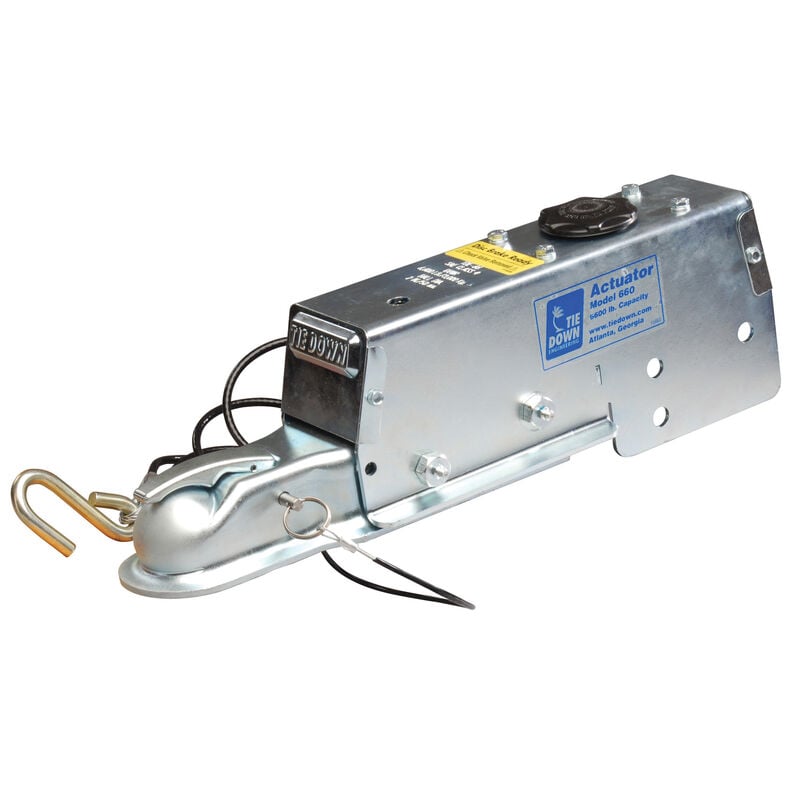

Actuator Disc Brake w/ Solenoid 6,600lb {Tie Down Model 660E}

SKU: 10200


About this Product

Rated Capacity 6600lbs., Ball Size 2", Frame Width 3", zinc finish
For trailers equipped with disc brakes. This model come with the reverse lockout solenoid installed. The model 66 capacity actuator provides greater towing capacity (6,600 lbs.) than traditional 6,000 lb. capacity actuators.
The patented all aluminum master cylinder incorporates the shock absorber into the master cylinder assembly. This exclusive product feature was designed into the master cylinder in order to provide the tow vehicle operator with an early warning signal when the brake fluid is at a low level. Tie Down's over sized master cylinder provides the pressures required to run disc brakes and the added brake fluid volume to run multi-axle configurations. Other features of Tie Down actuators: thicker gauge coupler hitch, quick bleed access design, pre-drilled and tapped for reverse lock out solenoid, vinyl coated tension coiled safety cable and stainless steel ball latch safety pin.
