Pontoon Trailers

Our Pontoon Trailers support a range of pontoon boat sizes. We manufacture trailers with your needs in mind. Select single or tandem axle, depending on your transport needs, boat size, and load-carrying capacity. Each pontoon boat trailer is made from hot-dipped galvanized steel to support your boat from travel to launch.

Benefits of a Pontoon Trailer

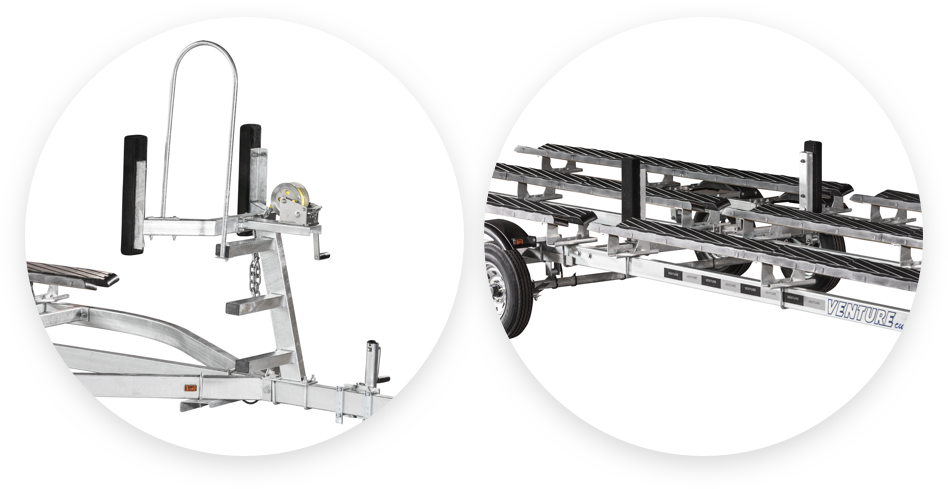

Ladder with safety handrail
Poly bunk sleeve
Inside Load Guides
Hot-dip galvanizing provides excellent corrosion resistance, season after season
Tubular frame design protects light wiring and brake lines from damage

If you are looking for a pontoon trailer for sale, visit your local dealer.

Each trailer comes with the Tredit Advantage Program, which includes 24/7 emergency service, vehicle theft recovery incentive, lost/stolen key service and more.

Standard Features on Venture Trailers*

Plug & Play Lights
Aluminum Diamond Plate Fenders
Heavy Duty Winch Straps
D.O.T. Composite Brake Line with Brass Fittings
Balanced Radial Tires
Eliminator GalvX Vented Rotor Disc Brakes
Super Lube Spindles
Wheel Balancing
Galvanized Hardware, U-bolts, Winch Stand, Axles, Tongue
...and many other components

*Some features are not standard on all models. Please check with your dealer for additional information.

Galvanized Pontoon Trailers

Horizontal scrolling is enabled on the table below.

Model

Capacity

*Boat Length

Overall Length

Minimum Ctr to Ctr Bunk Width

Maximum Ctr to Ctr Bunk Width

GVWR

Tongue Jack

# of Axles

Brakes

Tire Size

Overall Width

Between Fenders

VPT-26-65

6500

23'-26'

32'6"

72"

80"

8100

2000lb Foot

Disc-2

ST175 80R 13LRC

98"

78"

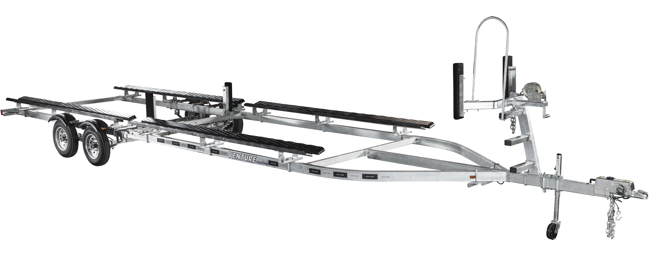

GalvanizedTandemAxlePontoons3000–5000LoadCapacity

Horizontal scrolling is enabled on the table below.

Model

Capacity

*Boat Length

Overall Length

Minimum Ctr to Ctr Bunk Width

Maximum Ctr to Ctr Bunk Width

GVWR

Tongue Jack

# of Axles

Brakes

Tire Size

Overall Width

Between Fenders

VPT-18-32

3200

17'-19'

23'3"

72"

80"

4185

Single Wheel

Disc-1

ST175 80R13 LRC

98"

78"

VPT-22-32

3200

19'-22'

26'3"

72"

80"

4320

Single Wheel

Disc-1

ST175 80R13 LRC

98"

78"

VPT-22-40

4000

19'-22'

26'3"

72"

80"

5120

Single Wheel

Disc-1

ST175 80R13 LRC

98"

78"

VPT-22-50

5000

19'-22'

26'3"

72"

80"

6120

Single Wheel

Disc-1

ST185 80R13 LRD

98"

78"

VPT-24-40

4000

23'-25'

31'

72"

80"

5140

Single Wheel

Disc-1

ST175 80R13 LRC

98"

78"

VPT-24-50

5000

23'-25'

31'

72"

80"

6160

Single Wheel

Disc-1

ST185 80R13 LRD

98"

78"

VPT-26-40

4000

23'-26'

32'

72"

80"

5160

Single Wheel

Disc-1

ST175 80R13 LRC

98"

78"

VPT-26-50

5000

23'-26'

32'

72"

80"

6160

Single Wheel

Disc-1

ST185 80R13 LRD

98"

78"

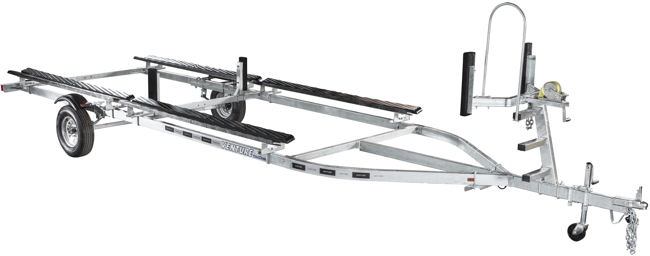

GalvanizedSingleAxlePontoons2000–2500LoadCapacity

Horizontal scrolling is enabled on the table below.

Model

Capacity

*Boat Length

Overall Length

Minimum Ctr to Ctr Bunk Width

Maximum Ctr to Ctr Bunk Width

GVWR

Tongue Jack

# of Axles

Brakes

Tire Size

Overall Width

Between Fenders

VP-18-20

2000

17'-19'

23' 3"

72"

80"

2760

Optional

ST175 80R13 LRD

98"

78"

VP-18-27

2700

17'-19'

23'3"

72"

80"

3488

Optional

Optional _{*Highly Recommend Brakes!}

ST215 75R14 LRC

98"

78"

VP-20-20

2000

19'-21'

25'3"

72"

80"

2780

Optional

ST175 80R13 LRD

98"

78"

VP-20-25

2500

19'-21'

25'3"

72"

80"

3280

Optional

ST185 80R13 LRD

98"

78"

VP-20-27

2700

19'-21'

25'3"

72"

80"

3500

Optional

Optional _{*Highly Recommend Brakes!}

ST215 75R14 LRC

98"

78"

VP-22-25

2500

19'-22'

26'3"

72"

80"

3420

Optional

ST185 80R13 LRD

98"

78"

VP-22-27

2700

19-22'

26'3"

72"

80"

3420

Optional

Optional _{*Highly Recommend Brakes!}

ST215 75R14 LRC

98"

78"

VP-24-25

2500

22'-25'

31'

72"

80"

3440

Optional

ST185 80R13 LRD

98"

78"

VP-24-27

2700

22'-25'

31'

72"

80"

3660

Optional

Optional _{*Highly Recommend Brakes!}

ST215 75R14 LRC

98"

78"
