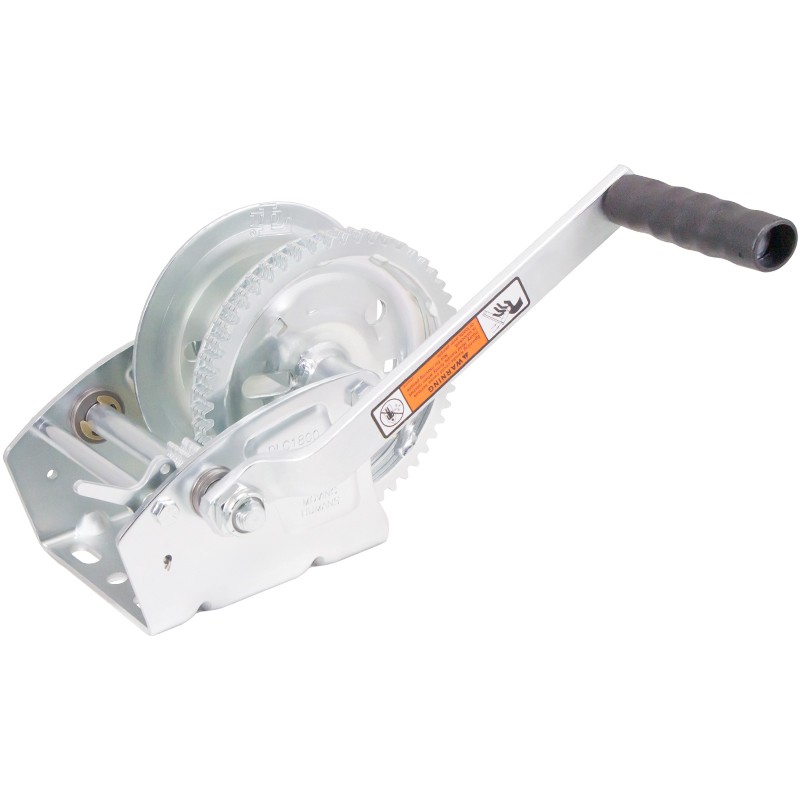

Winch 1800 lbs. Single-Speed DUTTON-LAINSON

SKU: 31011

The Dutton-Lainson DLC1800 winch is designed for horizontal pulling tasks such as boat trailers, with a 1,800 lb capacity, durable Zinc TUFFPLATE® finish, and maintenance-free bearings. Features include laminated high-carbon steel gears, ergonomic handle, and rigid reel construction.

$109.00

About this Product

Capacity: 1,800 lbs.
Handle: 9-1/2"
Gear Ratio: 5.4:1
Hub Size: 1-1/8"
Finish: Zinc TUFFPLATE®
Overall Dimensions: 7.5" x 9" x 6.5"
Strap Size (NOT Included): 20' x 2"
Strap Mounting Bolt Size (NOT Included): 5/16" x 2.75"
Brand: Dutton-Lainson
Model: DLC1800
Warranty: Limited 5 Year

Dutton-Lainson Company pulling winches are best suited for boat trailer and other horizontal pulling applications which require the freewheeling features of ratchet type winches. Features include:

*Laminated, high carbon steel gears for longer life
*All gears in models DLx1200 through DL3500B are heat treated for increased strength
*Permanently lubricated bearings on drive shafts are maintenance-free
*Heavy duty steel handles with ergonomic molded grips
*Drive shaft gears are copper brazed for durability
*Rigid, welded reel construction for added strength
*Load matched gear ratios for easier cranking
*All plated parts are zinc plated Tuffplate® finish
*Slotted mounting holes for easy installation
*All models except DL400 have heavy gauge embossed and reinforced steel bases for extra strength
*Ratcheting handle is available for models DL1602A, DL1802A, and DLx1900 when cranking space is limited
*Winches freewheel when the ratchet pawl is disengaged
*All models except DL3500B are equipped with slots in reel for easy installation of optional strap (strap sold separately)
*Available in powder coated copper bronze or zinc plated Tuffplate® finish

D-L pulling winches are not recommended for lifting applications. For lifting, use a D-L brake or worm gear winch. D-L winches are not to be used as hoists for lifting, supporting, or transporting people, or for loads over areas where people could be present.

Hand Winch Selection Guide: https://www.dutton-lainson.com/hand-winch-selection-guide/
