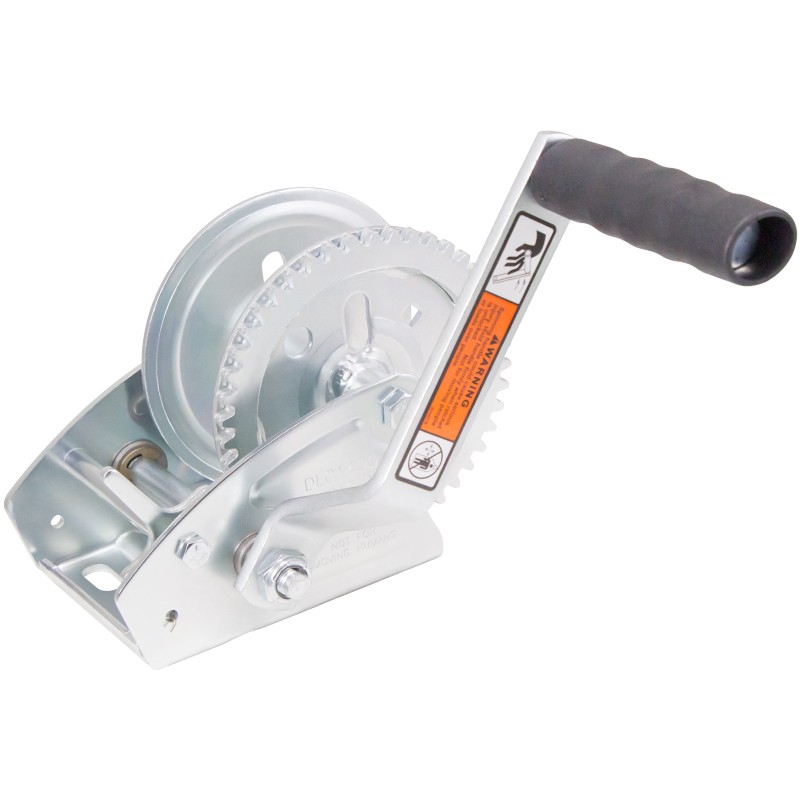

Winch 1400 lbs. Single-Speed DUTTON-LAINSON

SKU: 31007

The Dutton-Lainson DLC1400 is a 1,400 lbs capacity winch, designed for horizontal pulling applications, such as boat trailers. It features laminated, high carbon steel gears, a maintenance-free design with permanently lubricated bearings, and a durable zinc Tuffplate® finish for corrosion resistance. The winch is easy to install and includes a heavy-duty steel handle with an ergonomic grip.

$79.00

Winch 1400 lbs. Single-Speed DUTTON-LAINSON

About this Product

Capacity: 1,400 lbs.
Handle: 7"
Gear Ratio: 4.4:1
Hub Size: 7/8"
Finish: Zinc TUFFPLATE®
Overall Dimensions: 6.5" x 8" x 6.5"
Strap Size (NOT Included): 20' x 2"
Strap Mounting Bolt Size (NOT Included): 5/16" x 2.75"
Brand: Dutton-Lainson
Model: DLC1400
Warranty: Limited 5 Year

Dutton-Lainson Company pulling winches are best suited for boat trailer and other horizontal pulling applications which require the freewheeling features of ratchet type winches. Features include:

*Laminated, high carbon steel gears for longer life
*All gears in models DLx1200 through DL3500B are heat treated for increased strength
*Permanently lubricated bearings on drive shafts are maintenance-free
*Heavy duty steel handles with ergonomic molded grips
*Drive shaft gears are copper brazed for durability
*Rigid, welded reel construction for added strength
*Load matched gear ratios for easier cranking
*All plated parts are zinc plated Tuffplate® finish
*Slotted mounting holes for easy installation
*All models except DL400 have heavy gauge embossed and reinforced steel bases for extra strength
*Ratcheting handle is available for models DL1602A, DL1802A, and DLx1900 when cranking space is limited
*Winches freewheel when the ratchet pawl is disengaged
*All models except DL3500B are equipped with slots in reel for easy installation of optional strap (strap sold separately)
*Available in powder coated copper bronze or zinc plated Tuffplate® finish

D-L pulling winches are not recommended for lifting applications. For lifting, use a D-L brake or worm gear winch. D-L winches are not to be used as hoists for lifting, supporting, or transporting people, or for loads over areas where people could be present.

Hand Winch Selection Guide: https://www.dutton-lainson.com/hand-winch-selection-guide/
