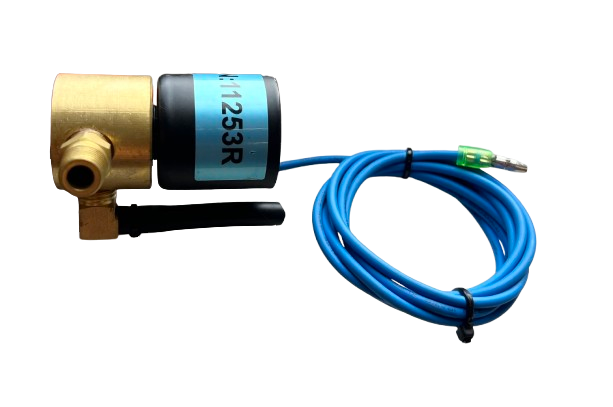

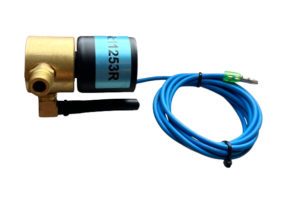

Actuator Disc Brake Solenoid - Back Flow Style Kit
About this Product
Fits all Tie Down actuator models #66, 70, 80, LP70, LP75, LP80. Adapts to hydraulic actuators with provisions for inlet tubes. Only one electrical connection required between solenoid and vehicle backup light. Solenoid is set for "Normally Open" operation.
The Backflow design allows for changing to reverse while vehicle is stopped in a down hill position. 12 volt solenoid valve connects to the tow vehicles back up light circuit for automatic brake lockout. Unit can be wired independently or adapted to trailer wire harness with a 5-flat plug on trailer and tow vehicle. Installs directly in line between the trailer hydraulic actuator and the brake line. Adapts to hydraulic actuators with provisions for inlet tubes. Only one electrical connection required between solenoid and vehicle back up light. Solenoid is set for "normally open" operation. A reverse lockout solenoid should be installed at the actuator before installation of disc brakes. Includes solenoid return tube. Thread Size: 3/16" IF x 1/8" MP10276
